Conlan Wiegand Access Control Systems
Stand Alone – Wiegand – OSDP – RS485
See Wiegand Documentation here.
![Code-and-mifare-reader](https://www.conlan.eu/wp-content/uploads/2020/08/Code-and-mifare-reader-1.png?x81347)

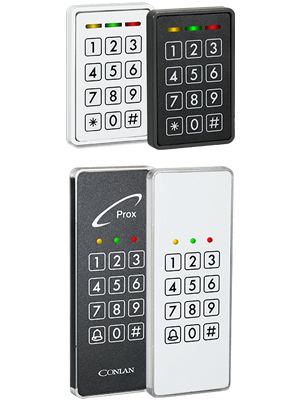

Keypad and Mifare reader for Wiegand
- Adjustable bit settings
- Singlekey and mastermode
- Setup on site for all Wiegand communication
- 2 outputs
- IP67 protection rate for indoor and outdoor use
- HxLxW (Mykey): 75x50x8 mm.
- HxLxW (Classic): 130x50x8 mm.
- Customised front labels
490010 CM1200 black, Mykey
490011 CM1200 white, Mykey
492010 CM1200 black, Classic
492011 CM1200 white, Classic
![Code-and-prox-reader](https://www.conlan.eu/wp-content/uploads/2020/08/Code-and-prox-reader.png?x81347)
Keypad and Proximity reader for Wiegand
- Atmel and EM compatible
- Adjustable bit settings
- Singlekey and mastermode
- Setup on site for all Wiegand communication
- 2 outputs
- IP67 protection rate for indoor and outdoor use
- HxLxW (Mykey): 75x50x8 mm.
- HxLxW (Classic): 130x50x8 mm.
- Customised front labels
490015 CP1200 black, Mykey
490016 CP1200 white, Mykey
492015 CP1200 black, Classic
492016 CP1200 white, Classic
![Code-and-Bluetooth-reader](https://www.conlan.eu/wp-content/uploads/2020/08/Code-and-Bluetooth-reader.png?x81347)

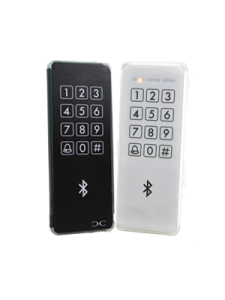

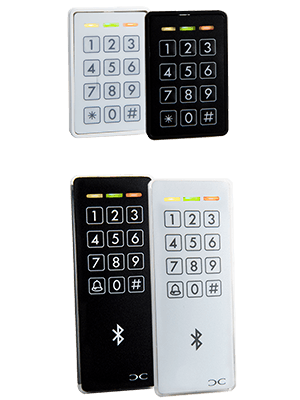

Keypad and Bluetooth reader for Wiegand
- For mobile phones and Bluetooth tags
Low energy Bluetooth
Adjustable bit settings
Adjustable range detection
Set up on site for all Wiegand communication
- 2 outputs
- IP67 protection rate for indoor and outdoor use
- HxLxW (Mykey): 75x50x8 mm.
- HxLxW (Classic): 130x50x8 mm.
- Customised front labels
OBS. Mykey size is delivered with an external bluetooth antenna
492130 CB1200LE black, Classic
492131 CB1200LE white, Classic
492230 CB1200LE black, Mykey
492231 CB1200LE white, Mykey
![Mifare-and-prox-reader](https://www.conlan.eu/wp-content/uploads/2020/08/Mifare-and-prox-reader.png?x81347)

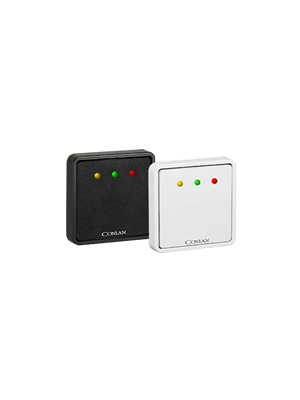

Proximity reader for Wiegand
- Atmel and EM compatible
- Adjustable bit settings
- Set up on site for all Wiegand communications
- 2 outputs
- IP67 protection rate for indoor and outdoor use
- HxLxW: 50x50x8 mm.
- Customised front labels
490070 P1200 black
490071 P1200 white
![Mifare-and-prox-reader](https://www.conlan.eu/wp-content/uploads/2020/08/Mifare-and-prox-reader.png?x81347)
Mifare reader for Wiegand
- Adjustable bit settings
- Set up on site for all Wiegand communication
- 2 outputs
- IP67 protection rate, for indoor and outdoor use
- HxWxL: 50x50x8 mm.
- Customised front labels
490060 M1200 black
490061 M1200 white
![Fingerprint-læser-ny Conlan ny fingerprint læser](https://www.conlan.eu/wp-content/uploads/2021/03/Fingerprint-laeser-ny-1.png?x81347)

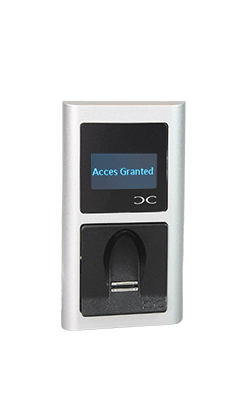

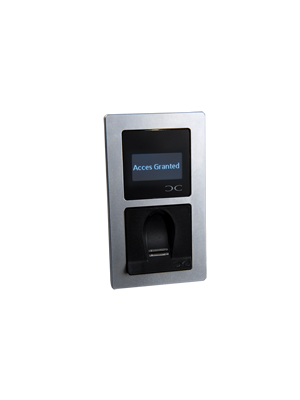

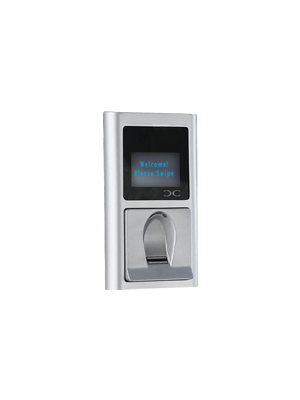

Fingerprint reader for Wiegand
- Up to 60 users
- Display to navigate the configuration menu
- Wiegand 26 output
IP67 protection rate for indoor and outdoor use
- HxLxWx: 45x45x10mm
- Wiegand output can be converted to OC output
490050 FP1200
![CT-classic-reader](https://www.conlan.eu/wp-content/uploads/2020/08/CT-classic-reader.png?x81347)
Keypad for Wiegand
- 26/8/4 bits
- 26 bits for codes and 8/4 bits for each digit
- Set up on site
- 2 outputs
- IP67 protection rate for indoor and outdoor use
- HxWxL: 130x50x8 mm.
- Customised front labels
460110 CT1200 black
460112 CT1200 white
![Prox-classic-reader Conlan proximity læser](https://www.conlan.eu/wp-content/uploads/2020/08/Prox-classic-reader.png?x81347)
Proximity reader for Wiegand
- EM and Atmel compatible
- 26 bits
- 2 outputs
- IP67 protection rate for indoor and outdoor use
- HxWxL: 130x50x8 mm.
- Customised front labels
